PET Silicone Release Film
Created with Pixso.

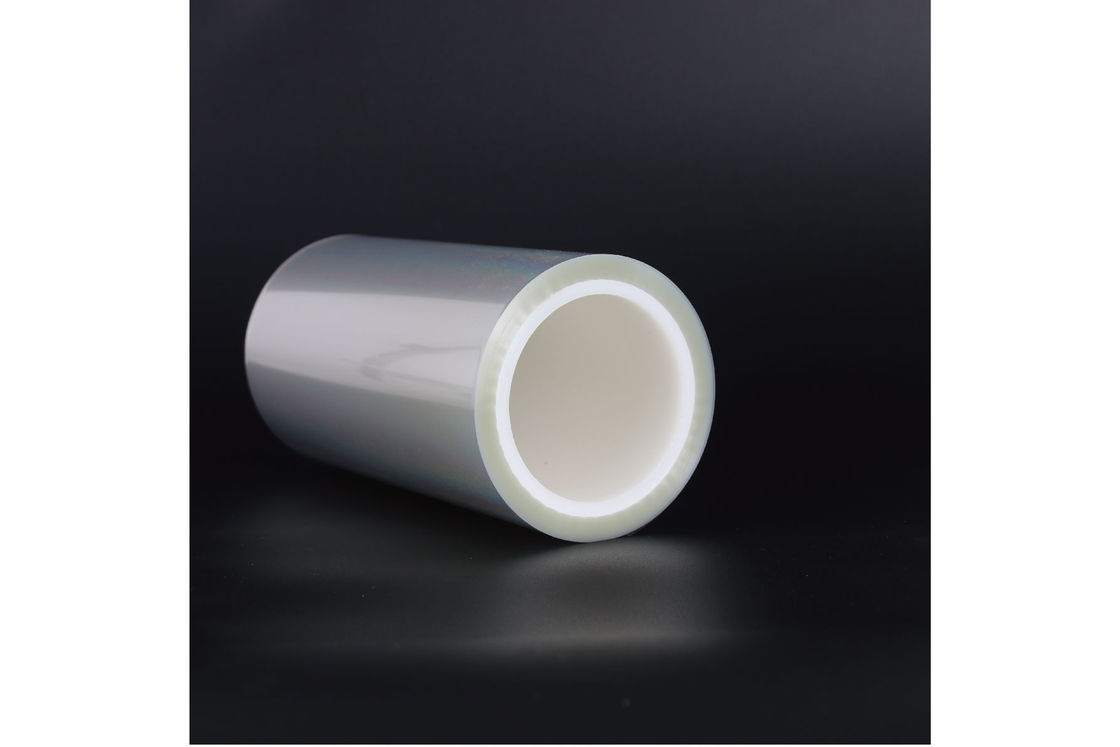

75μM Self-Adhesive Clear Pet Plastic Film Release With Silicone Coated

75μM Self-Adhesive Clear Pet Plastic Film Release With Silicone Coated

Brand Name: HUAMEI
MOQ: 6200 square meters
Price: 0.24/m²
Payment Terms: L/C,D/P
Supply Ability: 300000 m/day
Detail Information
Place of Origin:
China
Material:
PET
Width:
Customized
Length:
Customized
Thickness:
75 Or Customized
Supply Ability:
300000 m/day
Highlight:

75uM pet release film

,

Self-Adhesive pet release film

,

Silicone Coated pet release film

Product Description
75μM Self-Adhesive Clear Pet Plastic Film Release With Silicone Coated
Product Specifications
Attribute Value
Material PET
Width Customized
Length Customized
Thickness 75μM or customized
Product Overview

PET (Polyethylene Terephthalate) Silicone Release Film is a high-performance material widely used in industrial and manufacturing processes, particularly in adhesive tape production, composite material layup, and electronic component protection. Its unique combination of PET's mechanical strength and silicone's non-stick properties makes it indispensable for applications requiring precise release control and durability.

Key Features
  • Adhesive Tapes: Acts as a liner for pressure-sensitive tapes.
  • Tailored Solutions: Adjustable release force, thickness, color, and width to meet specific industrial needs.
  • Minimum Orders: Bulk supply starting from 5,000-8,000 meters, with options for pre-cut shapes.
  • Electronics: Critical for flexible printed circuits (FPCs) and OLED manufacturing.
  • Medical Products: Release films for wound dressings or transdermal patches.
Product Structure
75μM Self-Adhesive Clear Pet Plastic Film Release With Silicone Coated 0
Applications
  • Pressure-Sensitive Tapes & Labels: Serves as a protective liner for masking tapes, double-sided tapes, and packaging labels.
  • Tapes & Films: Backing for double-sided tapes, optical clear adhesive (OCA) films, and protective tapes.
  • Electronics & Precision Components: Screen Protectors: Temporary backing for OCA films applied to smartphone/tablet displays.
  • Flexible Printed Circuits (FPCs): Protects copper-clad laminates during etching and lamination.
  • OLED/LCD Displays: Acts as a release layer in screen protector films and touch panel manufacturing.
  • Battery Components: Separates adhesive layers in lithium-ion battery cell assembly.
Packaging Options
  • Products are generally used by cardboard tray, nude tray packaging
  • All cartons of products have certificate, packing list, each tray should have a list of products
  • Our products can also be packaged according to the requirements of the user agreement
Technical Specifications
Project Eigenvalues
Membrance Raw materials: PET
Color Customized according to user needs
Width(mm) Customized according to user needs
Length(mm) Customized according to user needs
Thickness(μm) 75
Release Force(g/in) 1-600
Residual adhesion rate(%) ≥ 85
Separating treatment Single sided processing / Double sided processing
Conventional range from the type of power 2±1,4±1,7±2,10±3,15±5,20±5,25±5,30±5,35±5,45±10,50±10,60±10,70±15,90±15,100±20,120±20,150±30,180±30,200±30,250±30,300±50,400±50,500±100
