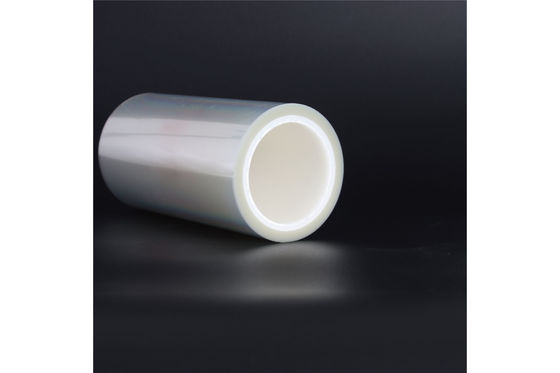

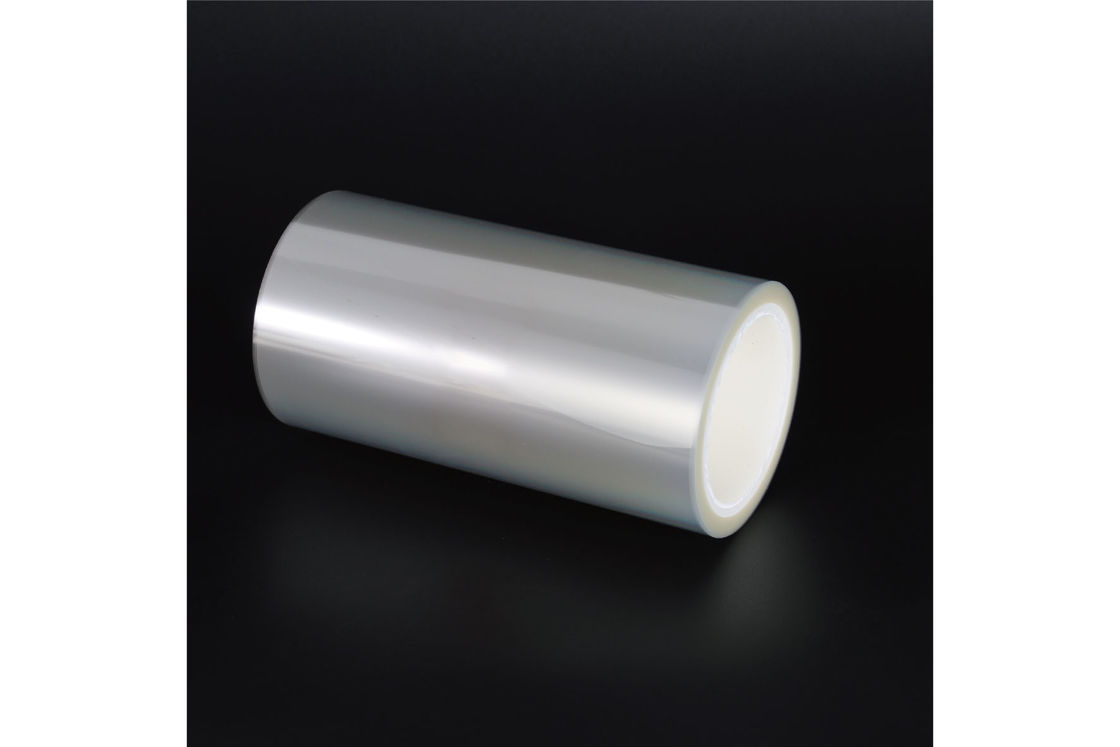

12 Micron Non Silicone Coated PET Release Film Single Sided

12 Micron Non Silicone Coated PET Release Film Single Sided

Brand Name:	Huamei
MOQ:	6200 square meters
Price:	0.24 $/m²
Payment Terms:	L/C,D/P
Supply Ability:	300000 m/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

PET

Width:

Customized

Length:

Customized

Thickness:

12 Or Customized

Supply Ability:

300000 m/day

Highlight:

12 Micron pet release film

Non Silicone Coated release film

Single Sided pet release film

Product Description

12 Micron Non Silicone Coated PET Release Film Single Sided

Product Attributes

Attribute	Value
Material	PET
Width	Customized
Length	Customized
Thickness	12 or customized

Production Introduction

PET (Polyethylene Terephthalate) substrate using a high-performance, front coated with release coating, antistatic treatment on the back, making products with anti-static function, reduce negative phenomena caused by static electricity.

Product Features

Producing in the 1000-level clean environment, with high cleanness.
It has stable antistatic effect and good weather resistance.
Residual adhesion rate ≥85%, no performance impact on the bonding material, non-polluting.
Excellent film surface adhesion and weather resistance.

Product Structure

Product Use

Pressure-Sensitive Tapes & Labels
Serves as a protective liner for masking tapes, double-sided tapes, and packaging labels.
Ensures easy unwinding without adhesive residue.
Sticker Backing
Used in decorative stickers, automotive decals, and promotional labels.
Flexible Printed Circuits (FPCs)
Protects copper-clad laminates during etching and lamination.
OLED/LCD Displays
Acts as a release layer in screen protector films and touch panel manufacturing.
Battery Components
Separates adhesive layers in lithium-ion battery cell assembly.

Product Packaging

Products are generally used by cardboard tray, nude tray packaging;
All cartons of products have certificate, packing list, each tray should have a list of products;
Our products can also be packaged according to the requirements of the user agreement.

Product Performance

Project	Eigenvalues
Membrance	Raw materials \| PET
Color	Customized according to user needs
Width(mm)	Customized according to user needs
Length(mm)	Customized according to user needs
Thickness(μm)	12
Surface resistivity(Ω*m)	10^5-10^9,10^9-10^11
Coating colour	Light,grey,transparent,light blue
Solvent resistant wiping	Customized according to user needs
Release Force(g/in)	1-180
Residual adhesion rate(%)	≥ 80
Conventional range from the type of power	2 ±1,4±1,7±2,10±3,15±5,20±5,25±5,30±5,35±5,45±10,50±10,60±10,70±15,90±15,100±20,120±20,150±30
