OLED PET Antistatic Release Film
Created with Pixso.

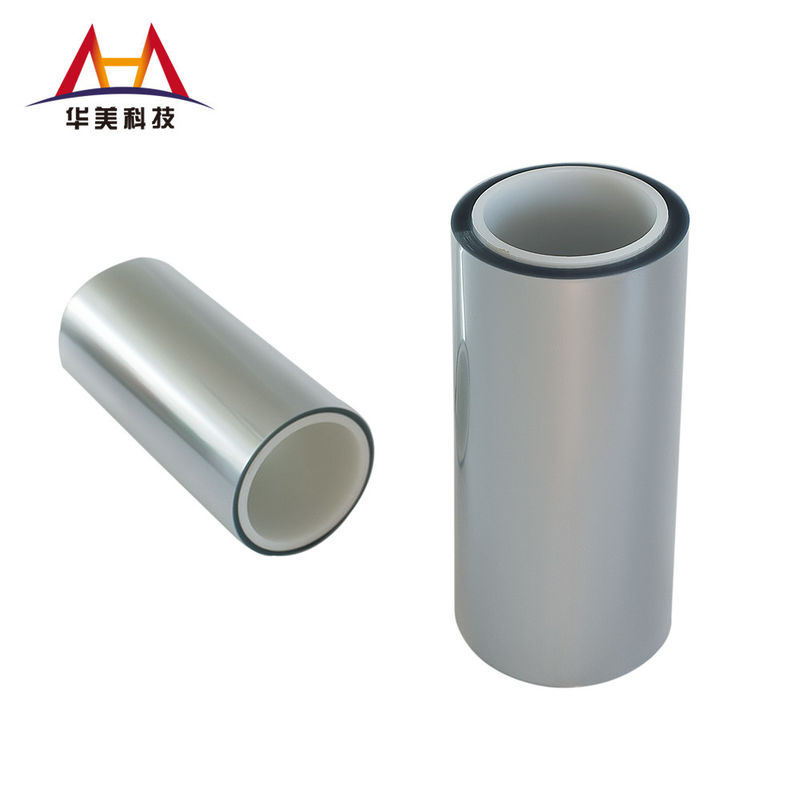

Low Surface Resistance Pet Film Release Liner 5g/In OLED Pet Release Film

Low Surface Resistance Pet Film Release Liner 5g/In OLED Pet Release Film

Brand Name: HUAMEI
Model Number: Silicone Release Film
MOQ: 6200 square meter
Price: 0.24-1.64/㎡
Payment Terms: L/C,D/P
Supply Ability: 300000m everyday
Detail Information
Place of Origin:
CHINA
Raw Material:
PET
Color:
Transparent
Width:
Customized According To User Needs
Length:
Customized According To User Needs
Thickness:
25/50/75
Release Force:
5 Or Customized
Residual Adhesion Rate:
≥90
Packaging Details:
Wrapping Film Protection+Carton Package+Tray Package
Supply Ability:
300000m everyday
Highlight:

pet film release liner 5g/in

,

oled pet release film

,

5g/in pet release film

Product Description
Low Surface Resistance Pet Film Release Liner 5g/In OLED Pet Release Film
Product Attributes
Attribute Value
Raw Material PET
Color Transparent
Width Customized according to user needs
Length Customized according to user needs
Thickness 25/50/75
Release Force 5 or customized
Residual adhesion rate ≥90
Product Description

5g/in OLED PET Antistatic Release Film with Low Surface Resistance

Product Introduction

This product is made of PET substrate with high flatness, high temperature resistance, and low orientation angle, coated with an ultra-thin polarizing film formula release substance. Primarily used for polarizing film and coating of polarizing film protective film.

Product Features
  • Produced in 100-level clean environment for high cleanness
  • Uniform coating without rainbow patterns, with flat film surface and excellent defect control for easy subsequent processing
  • High residual adhesion rate (≥90%) with no performance impact on bonding materials and non-polluting properties
  • Delicate component protection: Prevents static-induced defects in OLED organic layers and thin-film transistors (TFTs) during manufacturing
  • Durability: Resists UV degradation and chemical exposure from OLED etching agents
Product Structure
Low Surface Resistance Pet Film Release Liner 5g/In OLED Pet Release Film 0
Product Use
  • High-Temperature Process Compatibility: Withstands temperatures up to 150°C, suitable for OLED encapsulation and lamination processes. The PET substrate provides thermal stability while maintaining antistatic properties under heat stress.
  • Optical Component Handling: Serves as carrier film for precision die-cutting of OLED optical layers. Anti-static properties prevent misalignment caused by dust or static during cutting and stacking. Supports vacuum deposition processes by protecting metal electrodes from contamination.
Product Packaging
  • Standard packaging includes cardboard tray or nude tray packaging
  • All cartons include certificate and packing list, with each tray containing product list
  • Custom packaging available according to user agreement requirements
Product Performance
Project Eigenvalues
Membrance Raw materials
Color Transparent
Width(mm) Customized according to user needs
Length(mm) Customized according to user needs
Thickness(μm) 25/50/75
Release Force(g/in) 5
Residual adhesion rate(%) ≥ 85
Spareting treatment Single sided treatment
Antistatic treatment Single/Double sided treatment
Surface resistivity(Ω*m) 10^5-10^9
Conventional range from the type of power 2 ±1,4±1,20±5,40±10
FAQ
Are you a manufacturer or trading company?
We are a professional manufacturer with over 15 years experience.
What about the lead time for mass production?
7-14 days.
How can I get the free sample?
We provide free samples. Please tell us which model you want and pay the freight, then we will ship out the samples.
What about the payment?
L/C, D/P.
How can we guarantee quality?
We adopt advanced chemical and coating technology from Japan, and are equipped with equipment such as slitting machines, tensile testing technology, ROHS detectors, and constant temperature and humidity environmental testers.
