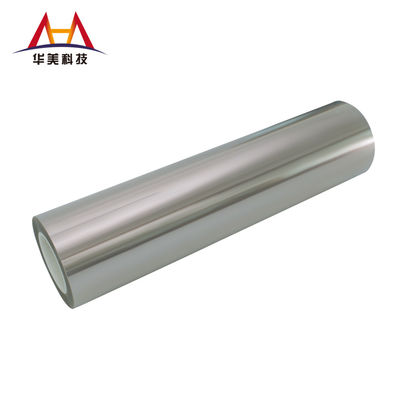

150μm MLCC PET Silicone Release Film Ceramic Layer Transfer Film RoHS/REACH Compliance

Name: 150μm MLCC PET Silicone Release Film Ceramic Layer Transfer Film RoHS/REACH Compliance
Brand: Jiangyin Huamei Photoelectric Science and Technology Co., Ltd.
SKU: Silicone Release Film
Price: 0.24 USD
Availability: InStock

Brand Name:	HUAMEI
Model Number:	Silicone Release Film
MOQ:	6200 square meter
Price:	0.24-1.64/㎡
Payment Terms:	L/C,D/P
Supply Ability:	300000m everyday

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Raw Material:

PET

Color:

Customized According To User Needs

Width:

Customized According To User Needs

Length:

Customized According To User Needs

Thickness:

150 Or Customized

Release Force:

3-40

Residual Adhesion Rate:

≥85

Packaging Details:

Wrapping Film Protection+Carton Package+Tray Package

Supply Ability:

300000m everyday

Highlight:

150μm mlcc pet silicone release film

150μm pet substrate

mlcc pet substrate

Product Description

150μm MLCC PET Silicone Release Film Ceramic Layer Transfer Film

RoHS/REACH Compliance

Product Attributes

Attribute	Value
Raw Material	PET
Color	Customized according to user needs
Width	Customized according to user needs
Length	Customized according to user needs
Thickness	150μm or customized
Release Force	3-40
Residual adhesion rate	≥85

Product Introduction

This high flatness, high temperature resistant PET film is coated with a release substance for MLCC formulations. Primarily used in MLCC tape coating applications.

Product Features

Manufactured in 1000-level clean environment for high cleanness
Uniform coating with flat film surface and minimal tolerance for easy processing
High residual adhesion rate (≥85%) with no impact on bonding materials
Excellent mechanical properties and weather resistance for harsh conditions
Superior film leveling and stability ensures ceramic layer flatness and stacking uniformity

Product Structure

Product Applications

Ceramic Layer Transfer in MLCC Production: Acts as a carrier substrate during ceramic slurry casting process, holding slurry in place while solvents evaporate to form uniform ceramic green sheets. Requires high smoothness (≤0.2μm defects) for defect-free ceramic layers.

Multilayer Stacking & Lamination: Enables stacking of 300-1,000 ceramic layers by maintaining alignment and preventing adhesion between layers during lamination. Features controlled release force for easy separation without residue.

Product Packaging

Standard packaging includes cardboard tray or nude tray packaging
All cartons include certificate and packing list
Custom packaging available per user agreement

Product Specifications

Parameter	Specification
Membrane Raw Material	PET
Thickness	150μm
Release Force (g/in)	3-40
Thermal Shrinkage Rate	MD ≤1.5, TD ≤0.5
Surface Roughness	Ra ≤25nm, Rz ≤350nm
Residual Adhesion Rate	≥85%
Surface Treatment	Single/Double sided

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer with over 15 years experience.

What about the lead time for mass production?

7-14 days.

How can I get the free sample?

We provide free samples. Please specify your model requirements and cover the freight cost.

What about the payment?

We accept L/C and D/P payment methods.

How can we guarantee quality?

We utilize advanced Japanese chemical and coating technology, equipped with slitting machines, tensile testing equipment, ROHS detectors, and environmental testers.
