Anti Static PET Film
Created with Pixso.

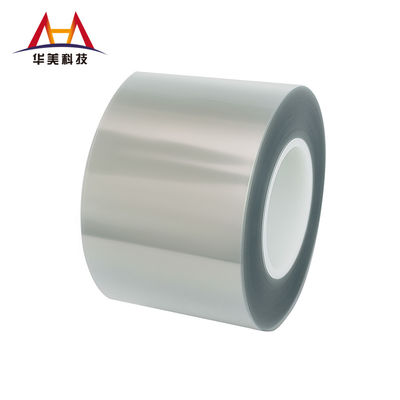

Antistatic Pet Substrate Film PET Protective Film 19μM Smooth Or Matte Surface

Antistatic Pet Substrate Film PET Protective Film 19μM Smooth Or Matte Surface

Brand Name: HUAMEI
Model Number: Silicone Release Film
MOQ: 6200 square meter
Price: 0.24-1.64/㎡
Payment Terms: L/C,D/P
Supply Ability: 300000m everyday
Detail Information
Place of Origin:
CHINA
Raw Material:
PET
Color:
Customized
Width:
Customized According To User Needs
Length:
Customized According To User Needs
Thickness:
19 Or Customized
Release Force:
1-180
Residual Adhesion Rate:
≥80
Packaging Details:
Wrapping Film Protection+Carton Package+Tray Package
Supply Ability:
300000m everyday
Highlight:

antistatic pet substrate

,

antistatic pet release film

,

19μm pet substrate

Product Description
Antistatic Pet Substrate Film PET Protective Film 19μM Smooth Or Matte Surface
Product Attributes
Attribute Value
Raw Material PET
Color Customized
Width Customized according to user needs
Length Customized according to user needs
Thickness 19 or customized
Release Force 1-180
Residual adhesion rate ≥80
Product Description

19μm Antistatic PET Release Film PET Protective Film With Anti-static Properties

Product Introduction

PET substrate using a high-performance, front coated with release coating, antistatic treatment on the back, making products with anti-static function, reduce negative phenomena caused by static electricity.

Product Features
  • Producing in the 1000-level clean environment, with high cleanness
  • It has stable antistatic effect and good weather resistance
  • Residual adhesion rate ≥85%, no performance impact on the bonding material, non-polluting
  • Anti-Contamination: Prevents dust/particle adhesion during handling, critical for optical films and precision electronics. Smooth or matte surface options to minimize light scattering in display applications.
  • Thermal and Chemical Resistance: Withstands temperatures up to 120 °C, suitable for high-temperature processing (e.g., circuit board lamination). Resists oils, solvents, and weak acids, ensuring durability in harsh environments.
Product Structure
Antistatic Pet Substrate Film PET Protective Film 19μM Smooth Or Matte Surface 0
Product Use

Electronics Industry

  • Component Protection: Anti-static PET film is used to protect sensitive electronic components from static discharge during manufacturing, storage, and transportation.
  • Screen Protectors: It is used to make anti-static screen protectors for electronic devices such as smartphones, tablets, and computer monitors.
  • Insulation: The film is used as an insulating material in various electronic applications where static control is necessary.

Printing Industry

  • Digital Printing: Anti-static PET film is used as a substrate in digital printing applications to prevent static buildup.
  • Screen Printing: It is used in screen printing processes to ensure that the film does not attract dust or other particles.

Optical Applications

  • Optical Films: Anti-static PET film is used in the production of optical films for displays and touchscreens.
  • Light Guides: It is used in light guide plates and other optical components where static control is necessary.
Product Packaging
  • Products are generally used by cardboard tray, nude tray packaging
  • All cartons of products have certificate, packing list, each tray should have a list of products
  • Our products can also be packaged according to the requirements of the user agreement
Product Performance
Project Eigenvalues
Membrance Raw materials: PET
Color Customized according to user needs
Width(mm) Customized according to user needs
Length(mm) Customized according to user needs
Thickness(μm) 19
Surface resistivity(Ω*m) 10^5-10^9,10^9-10^11
Coating color Light grey,transparent,light blue
Solvent resistant wiping Customized according to user needs
Release Force(g/in) 1-180
Residual adhesion rate(%) ≥ 80
Conventional range from the type of power 2 ±1,4±1,7±2,10±3,15±5,20±5,25±5,30±5,35±5,45±10,50±10,60±10,70±15,90±15,100±20,120±20,150±30
FAQ
Are you a manufacturer or trading company?

We are a professional manufacturer with over 15 years experience.

What about the lead time for mass production?

7-14 days.

How can I get the free sample?

We provide the free sample. Please tell us which model you want and pay the freight, then we will ship out the samples.

What about the payment?

L/C, D/P.

How can we grantee quality?

We adopt advanced chemical and coating technology from Japan, and are equipped with equipment such as slitting machines, tensile testing technology, ROHS detectors, and constant temperature and humidity environmental testers.
