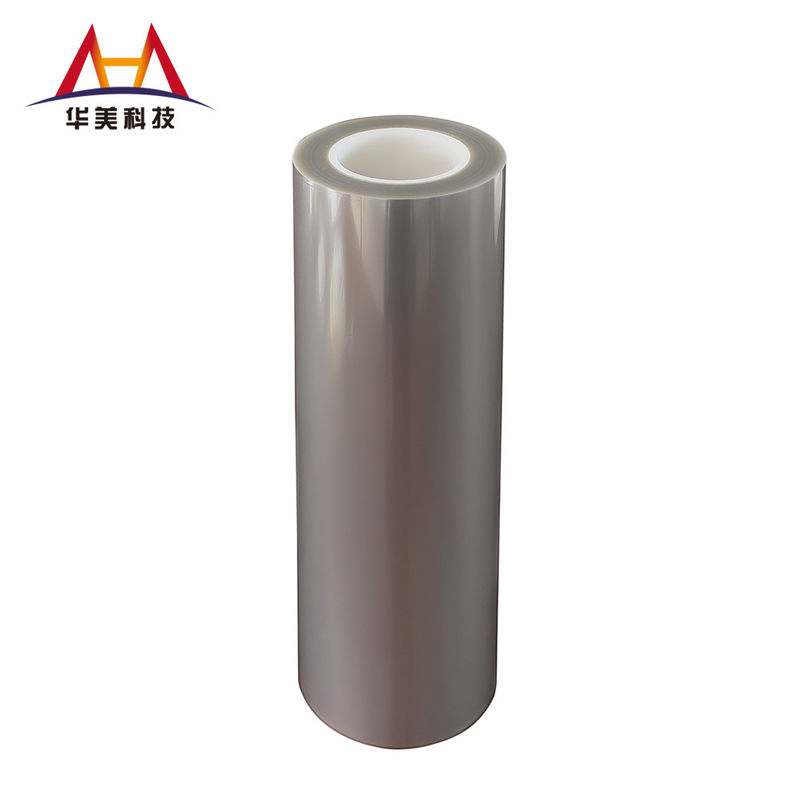

5g/in PET Silicone Release Film PET Release Liner For MLCC

Name: 5g/in PET Silicone Release Film PET Release Liner For MLCC
Brand: Jiangyin Huamei Photoelectric Science and Technology Co., Ltd.
SKU: Silicone Release Film
Price: 0.24 USD
Availability: InStock

Brand Name:	HUAMEI
Model Number:	Silicone Release Film
MOQ:	6200 square meter
Price:	0.24-1.64/㎡
Payment Terms:	L/C,D/P
Supply Ability:	300000m everyday

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Raw Material:

PET

Color:

Customized According To User Needs

Width:

Customized According To User Needs

Length:

Customized According To User Needs

Thickness:

25-188

Release Force:

5 Or Customized

Residual Adhesion Rate:

≥85

Packaging Details:

Wrapping Film Protection+Carton Package+Tray Package

Supply Ability:

300000m everyday

Highlight:

pet silicone release film

5g/in pet release liner

5g/in silicone release film

Product Description

5g/in PET Silicone Release Film PET Release Liner For MLCC

Product Attributes

Attribute	Value
Raw Material	PET
Color	Customized according to user needs
Width	Customized according to user needs
Length	Customized according to user needs
Thickness	25-188
Release Force	5 or customized
Residual adhesion rate	≥85

Product Description

5g/in MLCC PET Silicone Release Film Release Liner For MLCC is used as a base material of high flatness, high temperature resistance PET, coated with a thin layer of release substance for MLCC formulations. Mainly used in MLCC tape coating.

Product Features

Produced in a 1000-level clean environment for high cleanness
Uniform coating with flat film surface and minimal tolerance for easy processing
High residual adhesion rate (≥85%) with no performance impact on bonding material
Ultra-smooth surface (Ra <0.1μm) prevents defects during MLCC lamination
Defect-free production with no pinholes, streaks, or foreign particles

Product Structure

Product Use

Ceramic Layer Transfer in MLCC Production: Acts as a carrier substrate during ceramic slurry casting process, forming uniform ceramic green sheets with high smoothness (≤0.2μm defects).

Post-Processing & Recycling: Used as a buffer during punching to prevent mechanical damage. Many companies implement recycling programs for these films.

Product Packaging

Typically packaged in cardboard trays or nude tray packaging
All cartons include certificates and packing lists
Custom packaging available according to user requirements

Product Performance

Project	Eigenvalues
Raw materials	PET
Color	Customized according to user needs
Width(mm)	Customized according to user needs
Length(mm)	Customized according to user needs
Thickness(μm)	25-188
Release Force(g/in)	5
Thermal Shrinkage rate	MD ≤1.5, TD ≤0.5
Surface roughness	Ra ≤25nm, Rz≤350nm
Residual adhesion rate(%)	≥ 85
Spareting treatment	Single/Double sided treatment
Conventional range from the type of power	4 ±1,10±3,15±5,20±5,25±5,35±5

FAQ

Are you a manufacturer or trading company?

We are a professional manufacturer with over 15 years experience.

What about the lead time for mass production?

7-14 days.

How can I get the free sample?

We provide free samples. Please tell us which model you want and pay the freight, then we will ship out the samples.

What about the payment?

L/C, D/P.

How can we guarantee quality?

We adopt advanced chemical and coating technology from Japan, and are equipped with equipment such as slitting machines, tensile testing technology, ROHS detectors, and constant temperature and humidity environmental testers.
