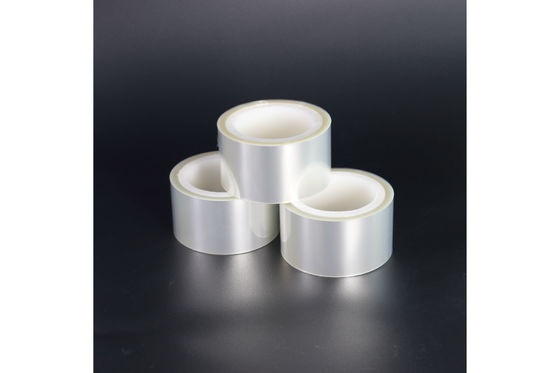

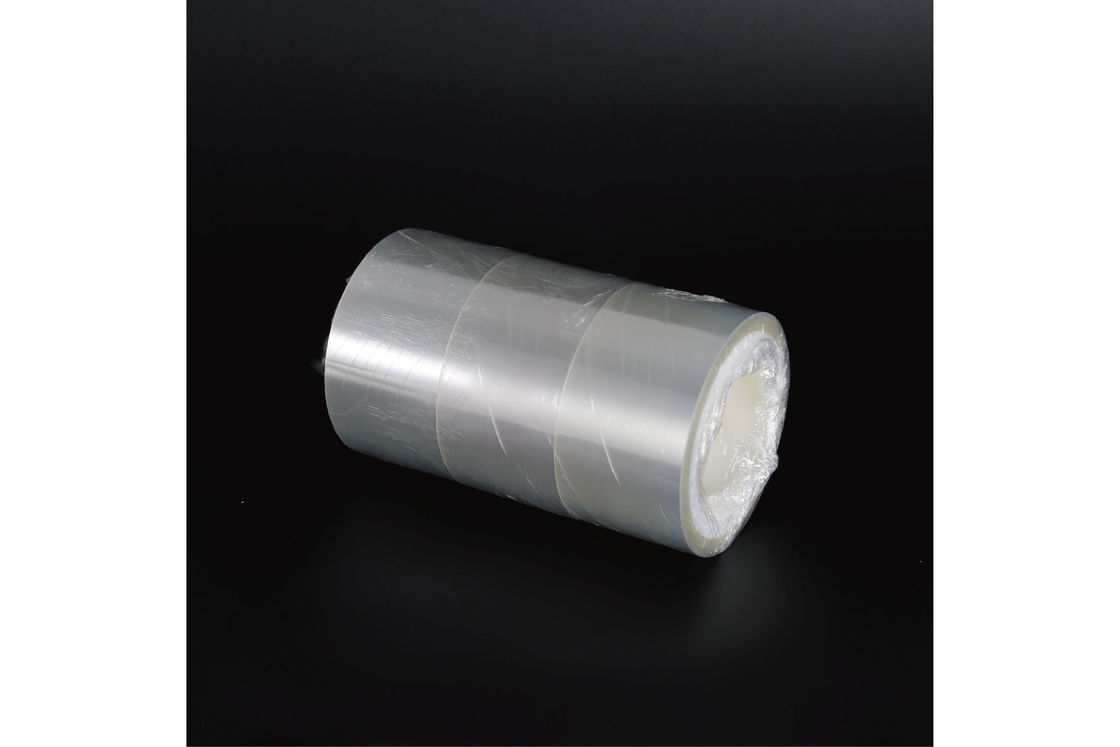

19 μm Glass Lens PET Protective Film Anti-static Printing Adhesive Film

19 μm Glass Lens PET Protective Film Anti-static Printing Adhesive Film

Detail Information

Product Description

Detail Information

Product Description

››› Production Introduction

PET (Polyethylene Terephthalate) substrate using a high-performance, front coated with release coating, antistatic treatment on the back, making products with anti-static function, reduce negative phenomena caused by static electricity.

››› Product Features

1.Producing in the 1000-level clean environment, with high cleanness.

2.It has stable antistatic effect and good weather resistance.

3.Residual adhesion rate ≥85%, no performance impact on the bonding material, non-polluting.

4.Excellent film surface adhesion and weather resistance.

››› Product Structure

19 μm Glass Lens PET Protective Film Anti-static Printing Adhesive Film 0

››› Product Use

1.Pressure-Sensitive Tapes & Labels

Serves as a protective liner for masking tapes, double-sided tapes, and packaging labels.

Ensures easy unwinding without adhesive residue.

2.Sticker Backing

Used in decorative stickers, automotive decals, and promotional labels.

3.Flexible Printed Circuits (FPCs)

Protects copper-clad laminates during etching and lamination.

4.OLED/LCD Displays

Acts as a release layer in screen protector films and touch panel manufacturing.

5.Battery Components

Separates adhesive layers in lithium-ion battery cell assembly.

››› Product Packaging

1.Products are generally used by cardboard tray, nude tray packaging;

2.All cartons of products have certificate, packing list, each tray should have a list of products;

3.Our products can also be packaged according to the requirements of the user agreement.

››› Product Performance

Project		Eigenvalues
Membrance	Raw materials	PET
	Color	Customized according to user needs
Width(mm)		Customized according to user needs
Length(mm)		Customized according to user needs
Thickness(μm)		19
Surface resistivity(Ω·m)		10^5-10^9,10^9-10^11
Coating colour		Light,grey,transparent,light blue
Solvent resistant wiping		Customized according to user needs
Release Force(g/in)		1-180
Residual adhesion rate(%)		≥80
Conventional range from the type of power	2±1,4±1,7±2,10±3,15±5,20±5,25±5,30±5,35±5,45±10,50±10,60±10,70±15,90±15,100±20,120±20,150±30

FAQ

Q Are you a manufacturer or trading company?

A We are a professional manufacturer with over 15 years experience.

Q What about the lead time for mass production?

A 7-14 days.

Q How can I get the free sample?

A We provide the free sample.Please tell us which model you want and pay the freight,then we will ship out the samples.

Q What about the payment?

A L/C,D/P.

Q How can we grantee quality?

A We adopt advanced chemical and coating technology from Japan, and are equipped with equipment such as slitting machines,tensile testing technology, ROHS detectors,and constant temperature and humidity environmental testers.
